JGINYUE B650M GAMING PLUS AM5 DDR5 Motherboard | Dual Channel RAM | PCIe 4.0 | M.2 NVMe | HDMI DP VGA | 64GB Max

Upgrade your rig with the 🧠 JGINYUE B650M GAMING PLUS – engineered for AMD’s latest AM5 Ryzen 7000 series CPUs. Built for high-speed gaming and productivity, this compact 🧱 M-ATX board delivers robust power, connectivity, and cooling.

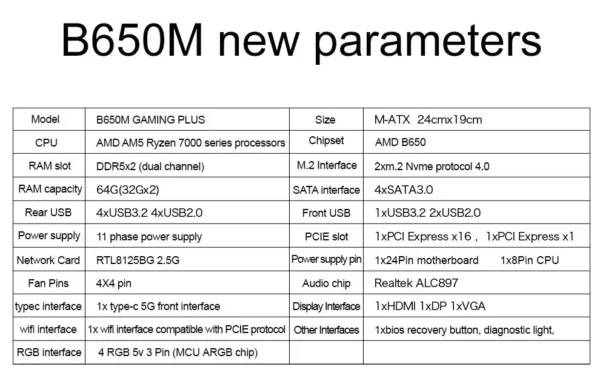

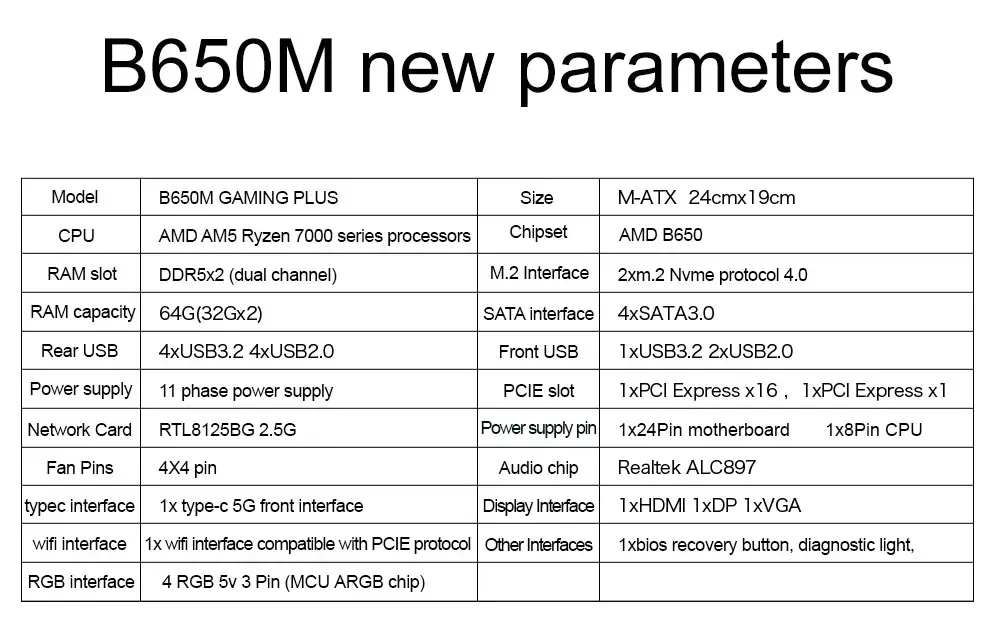

🔥 Key Features:
🧩 Socket: AM5 – Supports Ryzen 7000 series processors
📊 Chipset: AMD B650
🧠 Memory: Dual-channel DDR5, up to 64GB, 4800–6000+MHz
🚀 Expansion: 1x PCIe 4.0 x16 slot
💾 Storage: 4x SATA 6Gbps + 2x M.2 NVMe (PCIe 4.0)
📺 Video Outputs: HDMI + DP + VGA

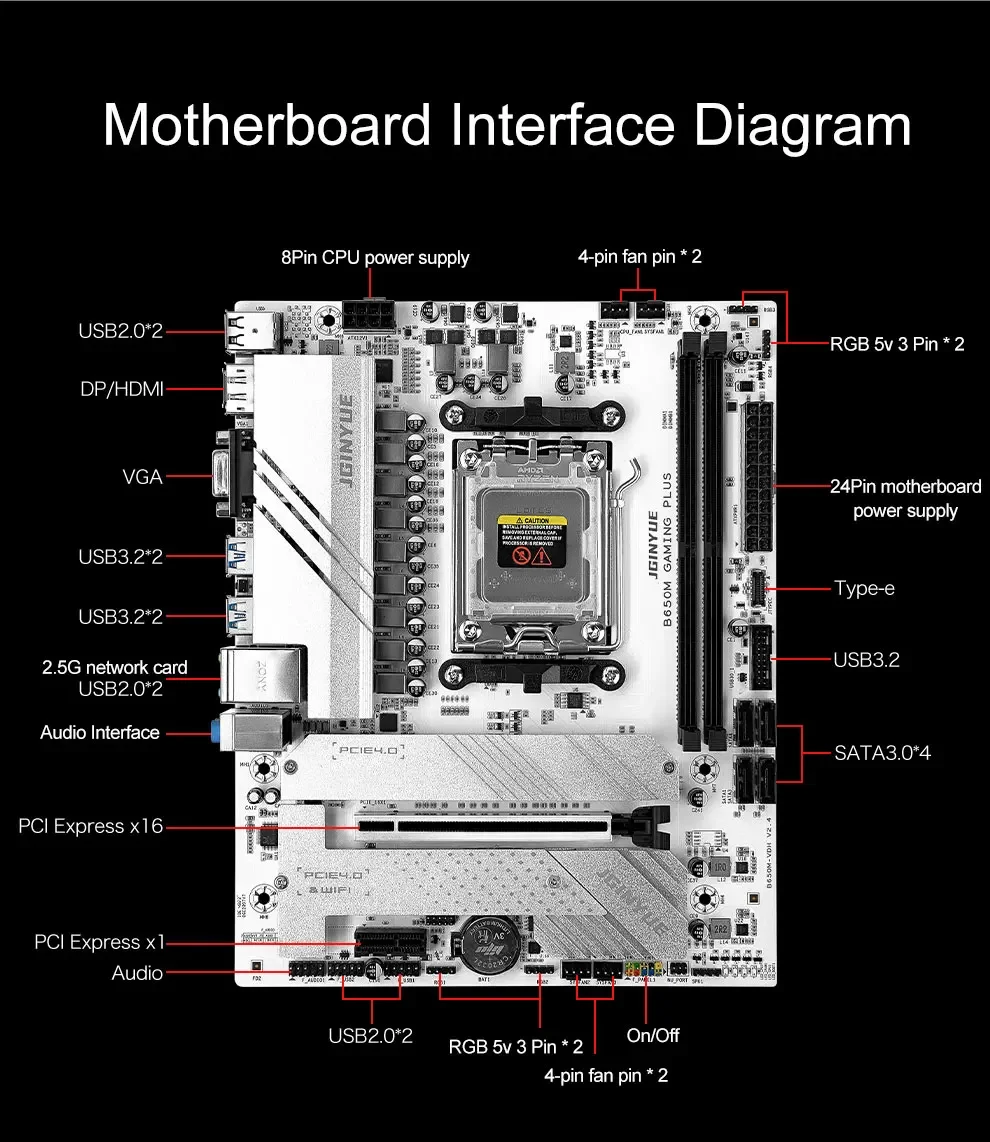

🔌 I/O Ports:
• Rear: 4x USB 3.2 + 4x USB 2.0
• Front: 1x USB 3.2 + 2x USB 2.0 (⚠️ Ryzen 8000 CPUs may disable one USB port)
🌐 Networking: Realtek 1Gbps LAN
🎮 Ideal for gaming, design, office or workstation builds
🛠️ Form Factor: Micro-ATX (24×19cm)

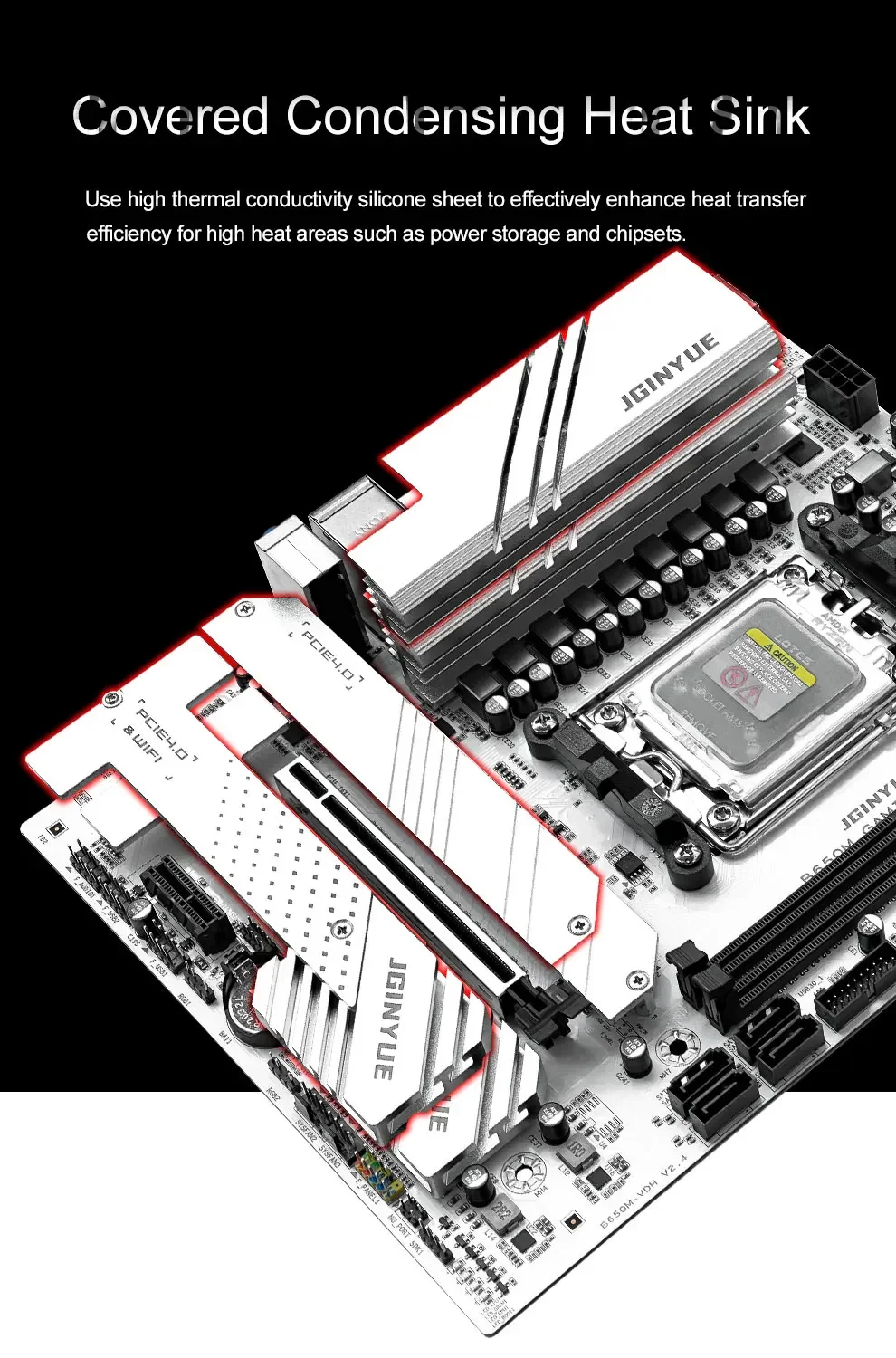

🧱 6-layer high-quality PCB with excellent heat resistance
🎯 Perfect balance of performance & price!
